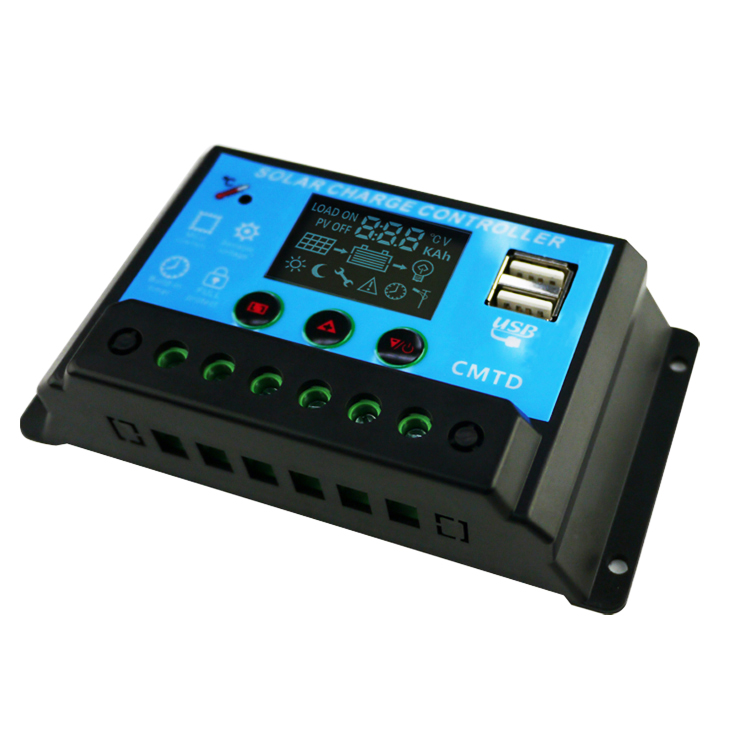

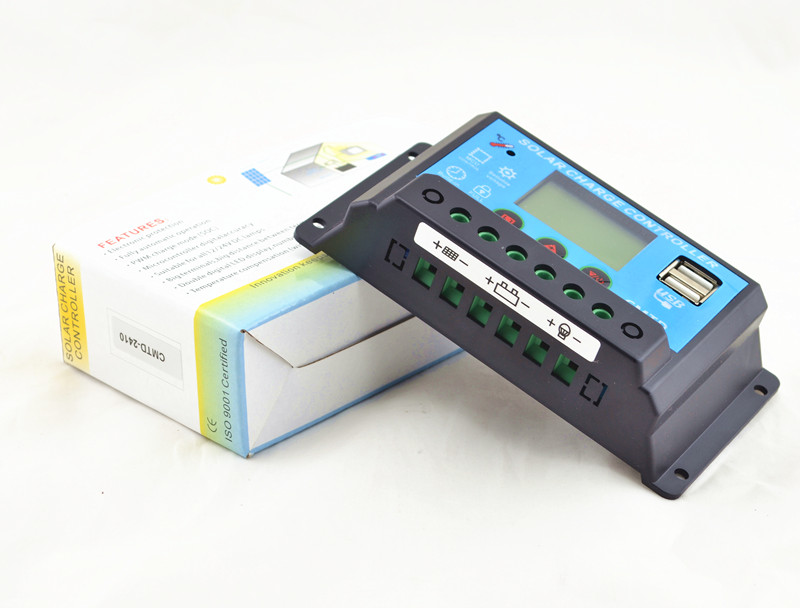

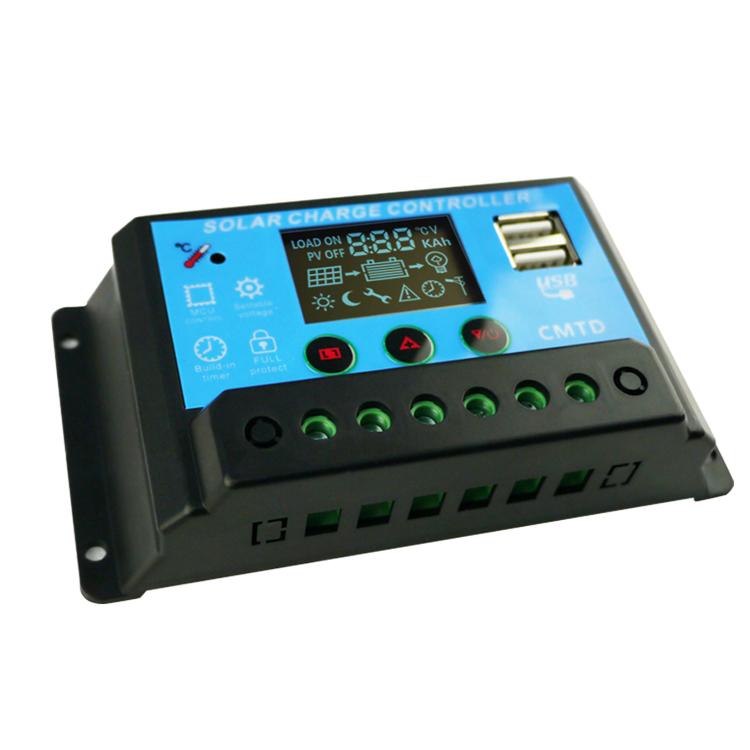

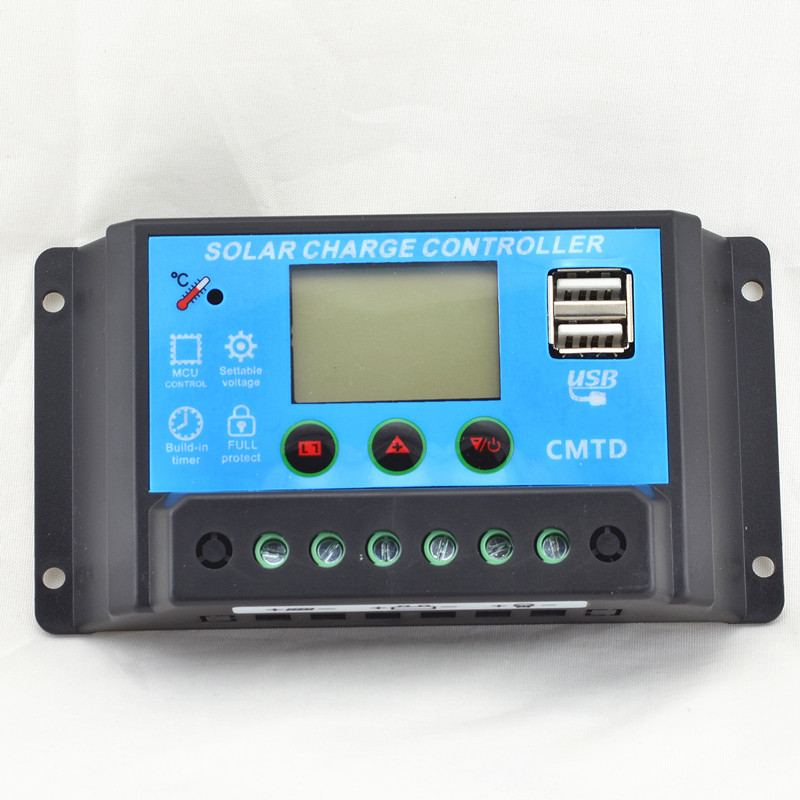

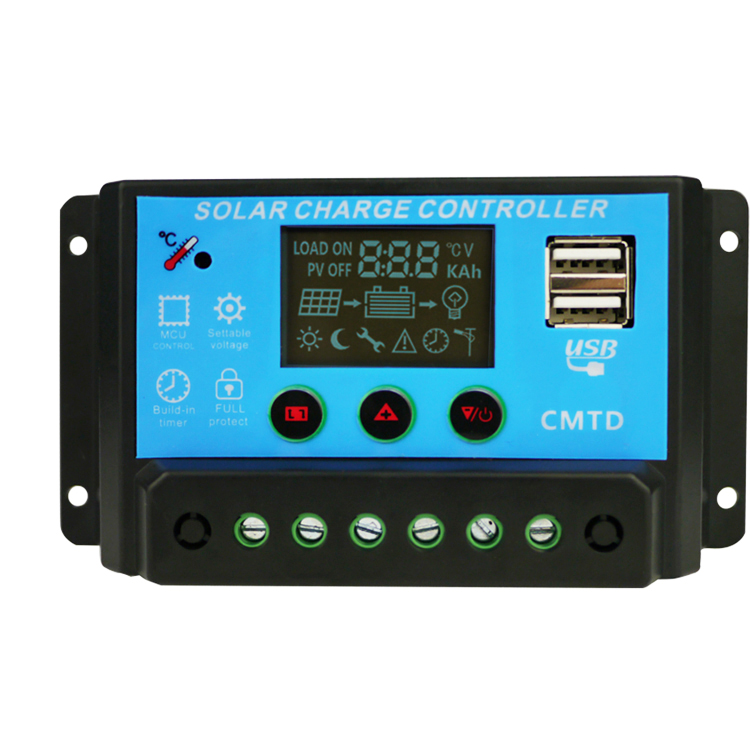

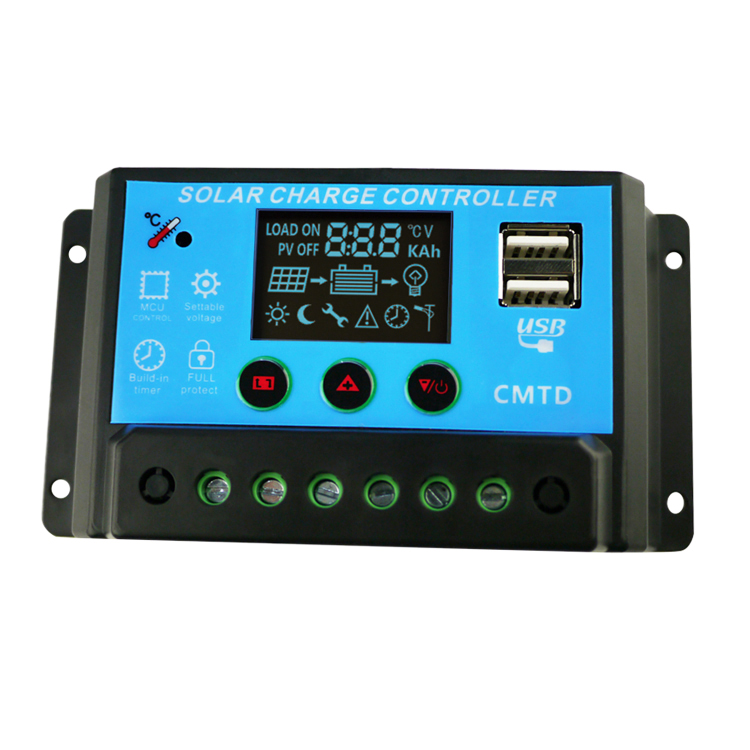

High Quality Solar Controller
Option A for lead acid battery:
|
Model |
CMTD-2410 |
CMTD-2420 |
|
Max. charge current |
10A |
20A |
|
Max. discharge current |
10A |
20A |
|
Max. solar panel input voltage |
≤50V |
|
|
Rated voltage |
12V/24V auto work |
|
|
Stop charge voltage |
14.7V/29.4V |
|
|
Low voltage recovery |
12.2V/24.4V |
|
|
Low voltage protection |
10.5V/21.0V |
|
|
USB output voltage/current |
5V 2A |
|
|
Characteristic |
No load loss:≤10mA; Temperature compensation:-3mV/cell/℃ |
|
|
Operation temperature |
-20℃~60℃ |
|
Option B for lithium battery:
|
Model |
CMTD-Li310 |
CMTD-Li320 |
|
Max. charge current |
10A |
20A |
|
Max. discharge current |
10A |
20A |
|
Max. solar panel input voltage |
≤50V |
|
|
Rated voltage |
11.1v |
|
|
Stop charge voltage |
12.6v |
|
|
Low voltage recovery |
11.1v |
|
|
Low voltage protection |
9v |
|
|
USB output voltage/current |
5V 500ma |
|
|
Characteristic |
No load loss:≤10mA; Temperature compensation:-3mV/cell/℃ |
|
|
Operation temperature |
-20℃~60℃ |
|
